PC X5 Not Powering On - Red Light Showing

PC X5 Not Powering On - Red Light Showing

Here are the instructions to Reset the BIOS.

This helps to resolve the power issue with your Access unit.

How to open the Access casing

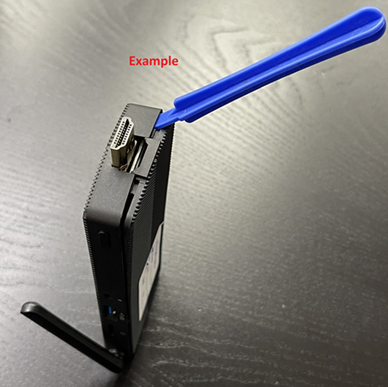

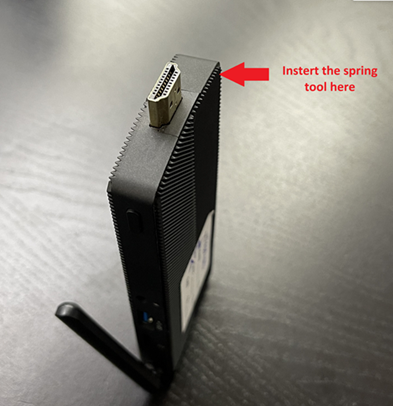

  • Hold the Access 4 with the HDMI port facing up. Use a spring tool to gently separate the two plastic parts. Be careful not to apply too much pressure to avoid breaking any clips or damaging the device.

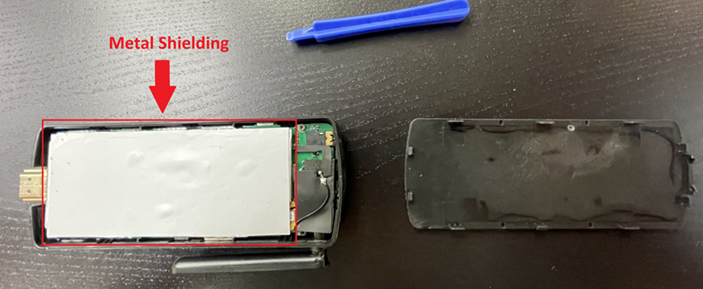

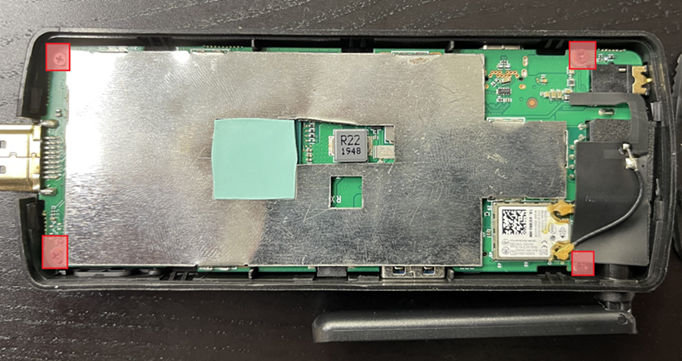

  • Then, remove the metal shielding to expose the four Phillips screws. Use a screwdriver to unscrew the four screws and keep them aside in a safe place.

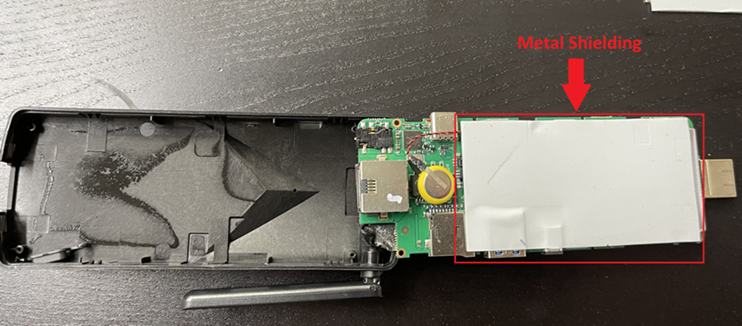

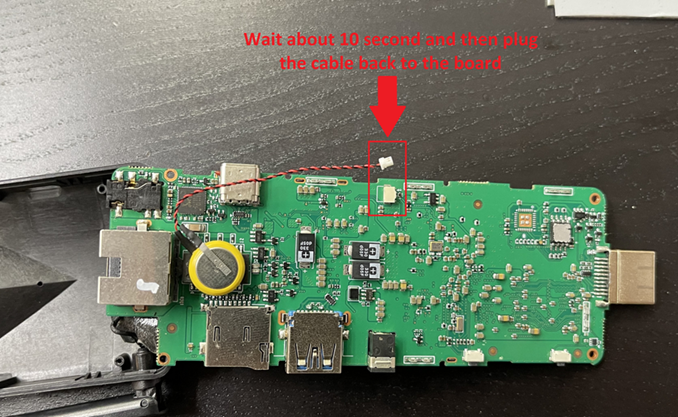

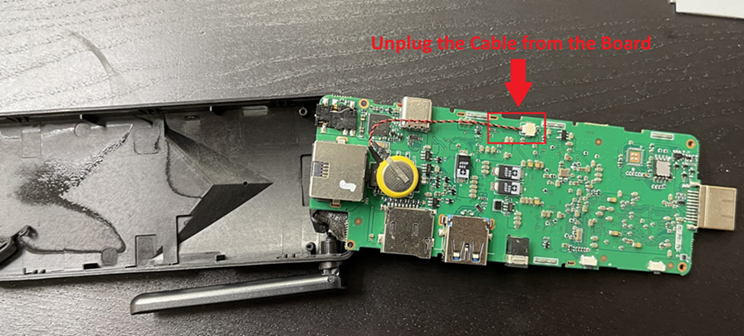

  • Flip the board to the other side and remove the metal shielding to expose a thin red and black cable connected to the board. Take care not to damage or pull the cable too hard. When unplugging the cable, wait for 10 seconds before reconnecting it to the board to ensure a clean connection.


  • Assemble every part back to its place and close the Access4 casing. Make sure that all the clips and screws are securely in place to avoid any rattling or looseness.
  • Finally, test the device to see if the problem persists. Check the HDMI port, power supply, and any other components to ensure that they are working properly.
